Main features

Disposable auto-complete feed, sterilization, box making, filling, forming, sealing action, the molding of composite materials using hydrogen peroxide spray and high intensity ultraviolet radiation and sterile hot air drying, packaging, materials completion of the aseptic chamber of the filling and after the filling of the seal are in a positive pressure conditions, thus ensuring a sterile packaging materials and materials to be packaged through a juice beverage after the UHT sterilization at room temperature shelf life of long up  to one year. In addition, the aircraft PLC optical correction, frequency control ,pneumatic solenoid valve, vacuum systems, liquid level control, smart electronic thermostat adjustment, automatic fault alarm system and sterile room, etc. Germany, Japan and other countries of the famous brand, the whole machine is used stainless steel, beautiful appearance, convenient operation.

Main technical parameters

TWB-40 straw applicator is suitable for aseptic brick pack, gable top carton and pouches food packaging straw application. The whole machine adopts Omron PLC control, man-machine interface touch screen operation. Air source treatment and actuator adopts Japanese SMC brand pneumatic control components using the U.S.MAC high frequency solenoid valve; motor Japanese Yaskawa high-speed servo system; system uses the world’s most well-known American Nordson hot melt rotation positioning motor and pineapple head transposition Zun Blue Series hot melt adhesive machine. Product delivery can be done automatically, straw conveying crop straw, plastic products, straw paste and fault alarm processes, save a lot of manpower and resources.

This machine is specially designed for molding, filling and sealing gable paper box with single line and single body gear box control. It is applicable to filling various liquid foods (such as milk, yoghurt, fresh oil and fruit juice drinks).Combined with its options, it can fill high-viscosity, granular or solid food products or other products. New CAP-PAC capping machine can be fixed on this packing machine directly to weld various plastic caps onto the preserved opening on the gable box directly ultrasonic technique.

Main characteristics

• * Simple design
• * Only need one operator, low-cost maintenance
• * Standardized parts, localized replacement
• * Short time for changing box sizes
• * High filling precision, with fine turning device
• * Compact design, less space required low noise
• * Low energy consumption
• * PLC control, easy operation, flexible
• * Guaranteed after-sales service and spare parts supply
• * Meeting USA 3A standard
• * Adjustable production speed, filling volume and box height, high adaptability
•

Technical parameter

Equipment configuration

• * Stainless steel shell structure
• * Mechanical drive system automatic vacuum box, put the box
• * Touch screen type PLC program control computer
• * Vacuum box part magic eye identification device
• * No paper boxes not filling the automatic induction switch
• * Safety polyester shields, electric control since
• * Stainless steel products to lock the door when you switch cylinder and level of pneumatic valve control
• * Standard diversion filling lips and filling fine-turning institutions
• * The top, bottom sealing hot air
• * Water cooling molding rods, sealing clamp
• * Electric control motor speed to realize the mechanical standard zero adjustment speed variation
• * To foam motor and vacuum generator
• * High, medium and low level control and the low level to be automatic alarm, stop device
• * Automatic paper box absorption to spurt the code machine
• * Liquid level controller/low level alarm
• * With filling system CIP cleaning accessores
• * Stainless steel panel with 3 PH/frequency 50 HZ/38
• * Centralized power supply lubrication system
•  * A year spare parts bag

Aspetic Plastic/Paper Pouch Filler

This machine is suitable for milk, soy milk, peanut milk, fruit juice, and other products of aseptic packaging. Automatic completion of bag making, filling, sealing, printing date, counting, bag for cleaning, etc. Man –machine interface, programmable control, pneumatic, the servo electrical engineering drive, advanced sterilization and aseptic security. The man-machine interface, PLC, photoelectric, pneumatic, lubrication, aseptic processing, servo system and all kinds of valve body adopt international famous brand. And the material of SUS 304, 316 are used for sanitary warranty.

Full Close Liquid Packing Machine

Full close liquid packing machine: applicable to automatic bag style package of liquid foods. Such as milk, bean milk, peanut milk, fruit milk, juice, beverage, soy sauce and acetic acid, tec. This machine is probably sack, filling, sealing, counting, date printing and UV sterilizing are automatically accomplished in a one-off.

Full-Automatic Preformed Cup Filling Sealing Machine

The TWD series machines are applicable to the packaging production of yogurt, milk, beverage, seasoning, etc. With the function of accomplishing paper cup or plastic cup loading, cup lacating, filling, lid placing, sealing, date printing, covering and product transportation full-automatically. These machines are equipped with world famous top brands system. This series machines, which have the optional systems of 100-class laminar flow protection, fruit particle and essence dynamic mixture, high-temperature filling and mobile code printing etc. And is the first choice for high-efficiency, energy saving and full-automatic production.

Fulling and Aluminum Foil Sealing Machine

This machine is used for production of bottle of milk, locate milk, soy milk, juice etc. The machine completes the process of vacuum negative pressure filling, cap forming, capping (optional) and electricity heat sealing automatically. Adopting world famous brand products from Germany, America, japan, etc. Including various sorts of valve and the system of PLC, optic-electronic and temperature control, pneumatic control and automatic lubrication, etc. It is the best choice for middle size enterprises.

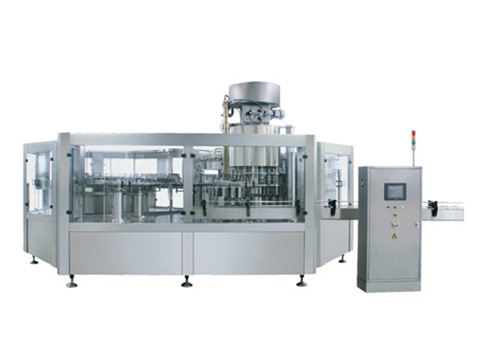

The series of machine are the integrated rinsing. Filling and capping machine, mainly suitable for producting the bottled mineral water, pure water, fruit juice, wine and so on. The output from 3000 to 36000 bottles per hour.
