TDR series parallel robotsReturn

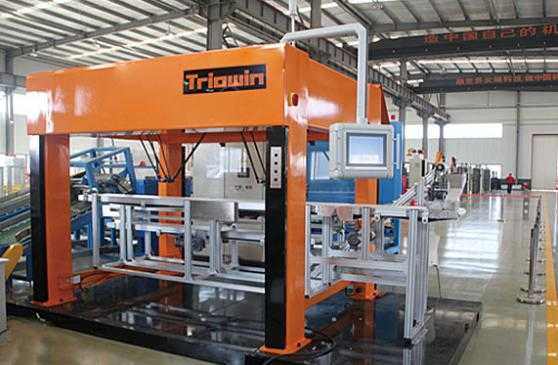

TDR series parallel robots
TDR series parallel robots combined with multiple perspectives visual system can random fetch the flow mixed products.These robots can complete the tidy of the product、classification、picking and packing in the container with high efficiency,low consumption and accurate. These robots can really achieve the workshop automatically、unmanned and green. They are widely used in food, medicine, electronics, cosmetics and other industries.
- Triowin TDR series parallel robots are high-speed、light load robots, they can achieve the motion---xyz translations and z- rotation.
- TDR series parallel robots combined with multiple perspectives visual system can random fetch the flow mixed products. These robots can complete the tidy of the product、classification、picking and packing in the container with high efficiency，low consumption and accurate. These robots can really achieve the workshop automatically、unmanned and green.
- These robots have the light weigh、high-speed、high efficiency characteristic and so on. They are widely used in food, medicine, electronics, cosmetics and other industries.
|
DOF |
3+1* |
|
Protection |
IP65 |
|
Noise level |
<68db |
|
Mass |
65kg |
|
Rotation axis |
optional |
|
Work range |
|
|
Rotation axis |
Angle unlimited, max. 2Nm |
|
Load capacity |
Max.3kg |
|
Cycle speed |
Max.150ppm |
|
Rotationalrepeatability |
+/-0.3° |
|
Translational repeatability |
+/-0.1mm |
|
Path |
Z1*Y*Z2 |
