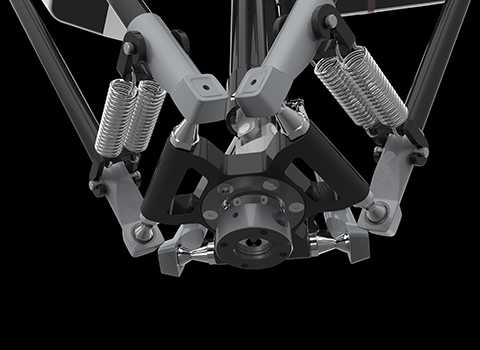

TDR Series 4 Axis Parallel Robot
TDR 4 Axis Parallel Robot are widely used in high-speed picking and placing. These robots are designed to perform with pay loads up to 3-8 kg and have a working envelope of 800/1600mm .The robots can be controlled by various industry standard motion control systems.Combined with a vision system, they can also be
used for random and/or mixed product flow picking.
- * The robot is suitable for high speed picking and placing the packet goods.
- * ISO mount gripper interface，easy to use complex jig or sucker.
- * Low cost maintenance, remote monitoring and maintenancethrough the net.
- * Intelligent, multi-angle vision control.
|
Robot Model |
TDR3103-1100 |
TDR3108-1600 |
|
Controlled |
4 axes |
4 axes |
|
Motion Range |
Diameter:1100mm Height:250mm |
Diameter:1600mm Height:350mm |
|
Accuracy |
±0.1mm |
±0.8mm |
|
Max Load |
3Kg |
8Kg |
|
Maximum Speed |
150cycles/minute |
100cycles/minute |
|
Weight |
85Kg |
165Kg |
|
Drive Method |
Electrical Drive |
|
|
Working Condition |
Temperature：0-45°C Humidity：Usually below 75% RH---no condensation phenomenon, short-term below 95% RH---a month |
|
